85PK Basic Package
3 1/3″ (~3.33″) piercing tool · Available for sale, rent, or repair · Package part # 07076933
Hero product view · catalog studio photo
Original catalog-style photos for Denca Equipment LLC. Not manufacturer brochure copies.
85PK Basic Package
Larger 3 1/3″ Basic Package when you need more bore capacity for bigger conduit under driveways and short roadway pierces. Each Basic Package arrives matched so your crew can set up and bore—tool, hose, lubricator, oil, starting level, and manuals included.
What this size is for
Larger conduit runs, short road approaches, and utility crossings that need extra diameter.
Available to buy, rent, or repair.
What's in the Basic Package
- Piercing tool (pneumatic impact mole)
- 50′ air supply hose
- In-line lubricator assembly
- 1 gallon tool lubricant
- Magnetic starting level
- Operators & parts manual
Key specs
| Model | 85PK |
|---|---|
| Tool diameter | 3 1/3″ (~3.33″) |
| Length | 53 in |
| Weight | 88 lb |
| Air consumption | 25 CFM |
| Strokes / minute | 480 |
| Basic Package part # | 07076933 |
| Tool part # | GKP0850028 |
How this Basic Package works

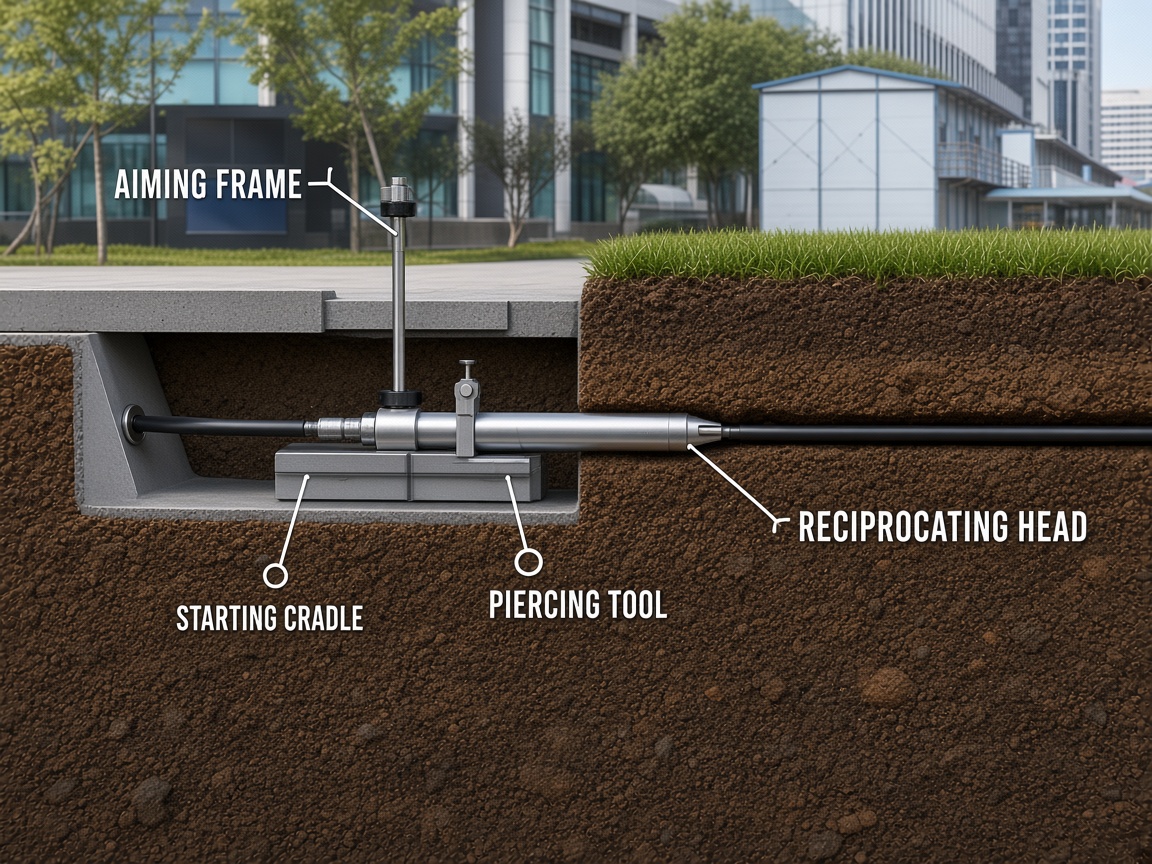

A pneumatic piercing tool (impact mole) uses compressed air to drive an internal piston that hammers a stepped-cone / chisel nose through soil. Soil is displaced and compacted—not hauled out—so you open two small pits instead of a long trench.
- Aim and shoot. Level the tool in the launch pit with the magnetic starting level, aim at the exit pit, and feed lubricated air through the hose.
- Stepped-cone accuracy. The reciprocating stepped-cone tip helps the tool hold course and power through minor obstructions in displaceable soil.
- Quarter-turn reverse. Most tools in this class reverse with a quarter turn of the air hose so you can back out if needed.
- Pull product while you bore. Where applicable, configure the Basic Package for trenchless pipe pulling—PVC, HDPE, fiber duct, or similar service pipe—often in the same pass with suitable clamps/adapters.
Under good soil conditions, pit-to-pit pierces of up to about 150 feet can be economical. Actual distance depends on soil, grade, and product size—tell us your run and we'll help you size the model.
Who it's for
Crews installing larger conduit or utility services that outgrow a 3″ class tool.
Typical jobs: trenchless installs under driveways and roads for fiber, gas, water, and power—when a full directional drill is more tool than the crossing needs.
Denca Equipment LLC is an independent supplier. Model numbers identify inventory for sale, rent, or repair; we are not the manufacturer. Trademarks belong to their owners. These are construction piercing tools—not military weapons. See Legal notices.
Ready to buy, rent, or repair the 85PK?
Tell us sale vs. rental vs. repair, run length, and soil—we reply by email.
